Exfoliated Graphite Jointing

Our range of NOVUS Exfoliated Graphite products are designed for demanding, high temperature applications typical of the petrochemical and refining industries.

Manufactured from high purity exfoliated graphite, the product is available with a variety of metallic inserts and combinations. Ultra high purity graphite is available for the nuclear industry and high pressure grades are also available.


Novus™ FI (Foil)



Colour: Black

Description: Good quality compressed sheet material based on aramid fibre with a nitrile rubber binder system.

Service: Suitable for use in a wide range of applications, including hot and cold water, steam, oils, fuels, gases and a wide range of general chemicals.

Max Temp: Oxidising media -200°C to 450°C

Max Pressure: 140 bar

Thickness Range: 1.5 mm; 2.0 mm; 3.0 mm

Sheet Size: 1 000 mm x 1 000 mm

Rating: Please view Specification

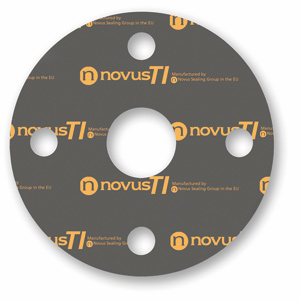

Novus™ TI (Tanged)



Colour: Black

Description: Pure exfoliated graphite with a tanged 316 stainless steel reinforcement for improved blow-out resistance.

Service: Universal material for high temperature applications including steam.

Max Temp: Oxidising media -200°C to 450°C

Max Pressure: 140 bar

Thickness Range: 1.5 mm; 2.0 mm; 3.0 mm

Sheet Size: 1 500 mm x 1 500 mm

Rating: Please view Specification

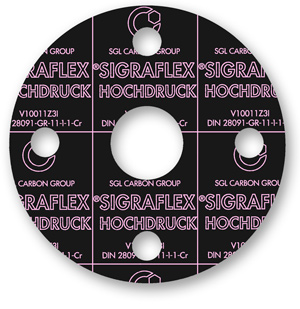

Sigraflex Hochdruck



Colour: Black

Description: Sigraflex Hochdruck is produced specifically for applications requiring a high degree of purity in the laminate, such as the Nuclear industry.

Service: Specifically designed for use in low bolt-loaded irregular flanges. Typical flanges include glass lined, ceramic, plastic coated or uneven flanges.

Max Temp: Oxidising media -200°C to 450°C

Max Pressure: 140 bar

Thickness Range: 1.5 mm; 2.0 mm; 3.0 mm; 4.0 mm

Sheet Size: 1 000 mm x 1 000 mm; 1 500 mm x 1 500 mm

Rating: Please view Specification
